Powered Air Purifying Helmet Respirators For use in Shotcrete Applications

These helmet respirators offer excellent respiratory protection as well as high user comfort.  Shotcrete Helmet  systems are NIOSH approved and conform to ANSI standards for hard hat protection and visor impact.

FOR PERSONAL RESPIRATORY PROTECTION WHILE WORKING IN
SHOTCRETE

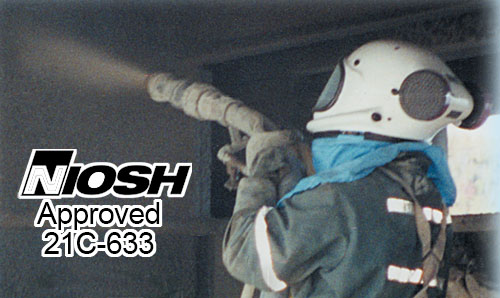

Shotcrete Helmet is a Self-contained helmet for easy mobility, ideal for shotcrete applications.

kompac88new
pic2

FEATURES AND BENEFITS

  •     Approved according to International standards.
  •     No cord, belt or breathing tube required
  •     Wide view visor
  •     Complete protection of the head, face ears and neck
  •     The positive pressure helps to breathe comfortably even under strain
  •     Fits most head sizes and accommodates beards and eyewear
  •     Air flow distribution studied for uniform ventilation around the operator’s head
  •     Battery charger with automatic controller charge

PROTECTION:

Respirators with helmets are the only power assisted devices which can protect the head, face, eyes, ears and respiratory system against particles and gases. Inspired filtered air is sent by a blower unit through a breathing tube to the inside of the helmet creating a slight overpressure. The continuous flow of air prevents visor misting and reduces breathing strain.

COMFORT:

The respirator is easy to don and use also by inexperienced workers. Lightweight and of simple design, it is comfortable to wear even in harsh working conditions.

LIFE:

The use of carefully selected first choice raw materials guarantee a product average life expectancy of over ten years.

  • The respirator has batteries, blower/fan unit and filters all built into the helmet. This gives the wearer complete freedom of movement when in use.
  • Self-contained for mobility, and cooler. More comfortable than half mask or full face mask respirators.
  • The respirator respirator is NIOSH approved, #TC-21C-633.
  • The helmet conforms to ANSI Z89.1.1986 class C and the visor conforms to DIN and ANSI Z87.1, 1989 standard.

STANDARD COMPONENTS:

  • one helmet,
  • two blower units and one lithium battery included in the helmet,
  • one battery charger,
  • two P3 filters,
  • one shoulder support.

TECHNICAL INFORMATION

  • CLASSIFICATION EN 12941:2009 TH3 P R SL CONFORMITY DIRECTIVE 89/686/CE
  • NOMINAL PROTECTION FACTOR (NPF) EN529:2006 500 MAX AIRFLOW AT 20C-60%RH* 260 l/min
  • MIN AIRFLOW AT 20C-60%RH 235 l/min
  • COMPLETE RESPIRATOR WEIGHT 2.15 kg
  • SOUND LEVEL 74 dBa
  • POWER 11.1 V
  • BATTERY TYPE Li-Ion
  • RECHARGING TIME 3 h
  • RUNNING TIME >6 h
  • AVAILABLE SIZES Adjustable headband
  • INGRESS PROTECTION RATING IP N/AV

*with battery fully charged and new filters​

Optional High Speed Fans Available

ORDER TODAY Call 1-800-461-4299



or



Email: info@shotcretehelmet.com

The Nozzlemen’s Choice Pressurized Fresh Air Helmet
